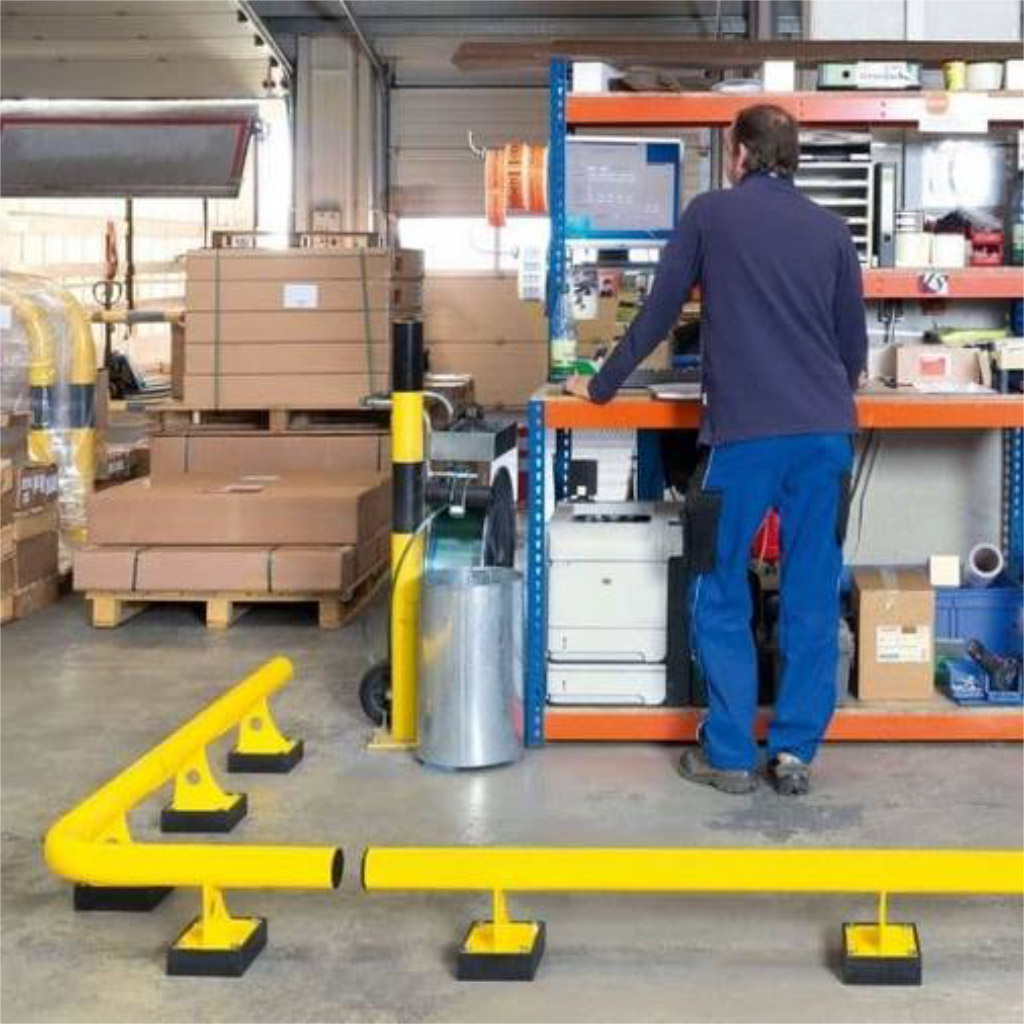

The BLACK BULL Raised Collision Bars are manufactured in high quality thick walled steel tubes which are welded to metal uprights. These are then welded onto solid steel base plates 10mm thick. All metal work is powder coated yellow with black moulded plastic plugs inserted in the tube ends. The Collision Bars are available in standard lengths which can, if required, be made into longer continuous lengths by means of connecting adaptors. Please advise at time of ordering.
BLACK BULL Raised Collision Bars are secured to the floor with rawl plug bolts or through bolts. (Supplied separately).
A 50mmØ hole is drilled into each upright which provides a conduit for cables/airlines etc. up to 48mmØ.
Specifications:
Diameter: 76mm
Wall thickness: 3mm
O/all height: 200mm
Base plate: 160 x 140 x 10mm
Finishes:
Powder coated yellow
